8.8 Liter
Transportation
| PRODUCT SPECIFICATIONS | |
| Model Number | 8.8 Liter |
|---|---|
| Cylinders | V-8 |
| Combustion System | Spark-ignited |
| Cooling System | Water-cooled |
| Displacement | 535 cid (8.767 L) |
| Compression Ratio | 9.1:1 |
| Bore & Stroke | 4.35 in x 4.50 in (110.5 mm x 114.3 mm) |
| Fuel Type | GASOLINE, NATURAL GAS (NG), PROPANE (LP) |
| Direction of rotation | Clockwise from front |
SAE J1995 rated following 36300018 PSI Derate Specification with a tolerance of +/-5%. Power and torque values are based on standard assumptions. kWe values are based on standard assumptions for mechanical and electrical losses. Ratings and performance are solely for reference only and subject to site conditions and PSI application and ratings guidelines. The product images shown are for illustration purposes only and may not be an exact representation of the final product. All information is subject to change without notice.
POWER RATINGS
GENERAL DATA & FEATURES
DIMENSIONS
| PEAK POWER AND TORQUE | ||||
| Fuel | HP | KW | LB-FT | NM |
|---|---|---|---|---|
| Gasoline | 265 | 197.6 | 548 | 743 |
| LP | 270 | 201 | 565 | 766 |
1) Heavy-duty, easy-to-integrate design
- Forged, induction-hardened crankshaft
- Forged rods and pistons
- Oil bath lubrication provides piston cooling
- Common controls, harness, exhaust, cooling & mounts
- Chassis integration
2) “Diesel-like” performance with “gasoline-like” operation
- Low-speed design offers unique torque & power curves
- Suitable replacement for diesel-powered applications
- Smooth, quiet, reliable power
- 25% less weight results in improved fuel economy
3) Custom configurations
- Customizable OBD-HD certified controller
- Flexible J1939 communications
- Various accessory drive configurations
- SAE2 and SAE3 transmission mounts
- Optional block heater, oil pan heater and oil cooler

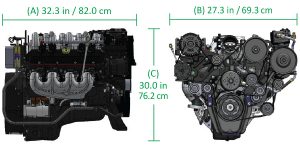

| DIMENSIONS | IN | CM |
| Length | 32.3 | 82.0 |
| Width | 27.3 | 69.3 |
| Height | 30.0 | 76.2 |
