2.4 Liter
Power Systems
| PRODUCT SPECIFICATIONS | |
| Model Number | 2.4L |
|---|---|
| Cylinders | I-4 |
| Combustion System | Spark-ignited |
| Cooling System | Water-cooled |
| Displacement | 143 cid (2.351 L) |
| Compression Ratio | 9.5:1 |
| Bore & Stroke | 3.40 in x 3.93 in (86.5 mm x 100 mm) |
| Fuel Type | NATURAL GAS (NG), PROPANE (LP), BI-FUEL |
| Direction of rotation | Counter-clockwise viewed on flywheel |
SAE J1995 rated following 36300018 PSI Derate Specification with a tolerance of +/-5%. Power and torque values are based on standard assumptions. kWe values are based on standard assumptions for mechanical and electrical losses. Ratings and performance are solely for reference only and subject to site conditions and PSI application and ratings guidelines. The product images shown are for illustration purposes only and may not be an exact representation of the final product. All information is subject to change without notice.
POWER RATINGS
GENERAL DATA & FEATURES

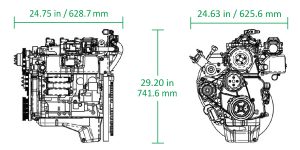

DIMENSIONS
| 50 HZ (1500 RPM) | ||||
| Rating | Fuel | kWe | kWm | bHp |
|---|---|---|---|---|
| Standby | NG | 20 | 26 | 35 |
| Standby | LP | 22 | 29 | 39 |
| 60 HZ (1800 RPM) | ||||
| Rating | Fuel | kWe | kWm | bHp |
|---|---|---|---|---|
| Standby | NG | 25 | 32 | 43 |
| Standby | LP | 30 | 35 | 47 |
- Fuel options: LPG, NG, Bi-Fuel
- Fuel and emission control system that meets Tier II EPA/CARB emission regulations for LSI engines
- Flywheel and SAE4 housing
- Instrument panel with auto shutdown devices
- Sheet metal enclosures
- Cooling fan
- Radiator
- Electronic governors
- Dry-type industrial air cleaners (safety element available)
- Remote oil filter and auxiliary oil drain
- Metal engine skid
- 95A alternator option / 70A alternator standard
- CANBUS J1939 interface
- Premium timing and balance belts
- High silicon content pistons for improved durability and noise reduction
- Sintered powdered-metal exhaust valve seat inserts for enhanced durability
- World-class engine sealing system for superior leak protection
- Integral harmonic balancer/crankshaft pulley for easier accessory drive dress
- Intake/exhaust manifolds standard
| DIMENSIONS | IN | MM |
| Length | 24.63 | 625.6 |
| Width | 24.75 | 628.7 |
| Height | 29.20 | 741.6 |
