3.0 Liter
Energy


PRODUCT SPECIFICATIONS
Model Number 3.0L
Cylinders I-4
Combustion System Spark-ignited
Cooling System Water-cooled
Displacement 181 cid (2,966.6 cc)
Compression Ratio 8.2:1
Bore & Stroke 4.00 in x 3.60 in (101.6 mm x 91.4 mm)
Fuel Type GASOLINE, NATURAL GAS (NG), PROPANE (LP)
Direction of rotation Counter-clockwise viewed on flywheel

SAE J1995 rated following 36300018 PSI Derate Specification with a tolerance of +/-5%. Power and torque values are based on standard assumptions. kWe values are based on standard assumptions for mechanical and electrical losses. Ratings and performance are solely for reference only and subject to site conditions and PSI application and ratings guidelines. The product images shown are for illustration purposes only and may not be an exact representation of the final product. All information is subject to change without notice.

POWER RATINGS
50 Hz (1500 RPM)
Rating Fuel kWe kWm bHp
Standby NG 24 29 39
Standby LP 25 31 41
60 Hz (1800 RPM)
Rating Fuel kWe kWm bHp
Standby NG 30 35 47
Standby LP 32 38 51
GENERAL DATA & FEATURES
  • Fuel options: Gasoline, LPG, NG
  • EPA/CARB emission certified
  • SAE 3 flywheel housing and direct drives
  • Ignition systems
  • Belt and pulley accessory drives
  • Starters and alternators
  • PTOs: Side load and in-line
  • Instrument panel with gauges and safety shutdowns
  • Electronic governors
  • Radiator and heat exchanger cooling systems
  • Engine mounting frames and enclosures
  • Three way catalyst
  • Nodular iron crankshaft for increased strength and durability
  • Composite front cover for noise reduction
  • High silicon content pistons for improved durability and noise reduction
  • Sintered powdered-metal intake seat and exhaust valve seat inserts for enhanced durability
  • Positive inlet and exhaust seals for reduced oil consumption
  • Integral harmonic balancer/crankshaft pulley for easier accessory drive dress
  • Exhaust manifold standard
  • High Energy Ignition (HEI) distributor and coil standard
  • Common rear face to GM Powertrain industrial engines for easy hookup with housing

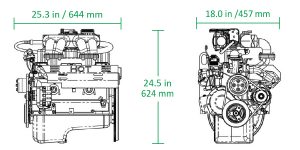

DIMENSIONS
DIMENSIONS IN MM
Length 25.3 644
Width 18.0 457
Height 24.5 624
